Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance

  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Luogo di origine Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello prodotti personalizzati
Quantità di ordine minimo 20-50 pc
Prezzo negotiable
Imballaggi particolari Scatola di schiuma e cartone
Tempi di consegna 20-45 giorni del lavoro
Termini di pagamento t/t
Capacità di alimentazione 2000 pezzi al mese

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
nome Cuscinetto scorrevole ceramico su misura Categoria Cuscinetto ceramico della pompa
Materiale Carburo di silicio sinterizzato senza pressione/Zirconia Dimensione Personalizzato, secondo i disegni
Utilizzo Pompa a motore in scatola Pacco Scatola di schiuma e cartone
Parola chiave cuscinetti per pompe a motore in scatola Tipo parte cruciale della trasmissione
Evidenziare

Silicon Carbide sliding bearing for pumps

,

Corrosion resistant ceramic sliding bearing

,

Canned motor pump sliding bearing
Lasciate un messaggio
Descrizione di prodotto
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Product Specifications
Attribute Value
Name Customized ceramic sliding bearing
Category Ceramic pump bearing
Material Pressureless sintered silicon carbide/Zirconia
Size Customized, according to the drawings
Use Canned motor pump
Package Foam + carton box
Product Description

Sliding bearing is a crucial transmission part, serving as the support and rotary unit of canned motor pump. With excellent corrosion resistance and wear resistance properties, silicon carbide (SSiC) is one of the best materials for pump sliding bearings.

Key Features
  • High Load Capacity: Made of high-strength alloy steel and SSIC for extreme pressure/temperature resistance
  • Low Friction: Hardened surface or coatings reduce wear
  • Dynamic Balance: Precision-balanced to prevent vibrations at high speeds
Applications
  • Aerospace (engine thrust systems)
  • Energy (wind turbines, gas turbines)
  • Industrial machinery (pumps, gearboxes)
Canned Motor Pump Applications

1. The canned motor pump is suitable for typical corrosive environments involving inorganic substances, acids, alkalis, and salts. In these applications, sintered silicon carbide (SSiC) serves as the standard material for sliding bearings.

2. The canned motor pump can operate in both common corrosive conditions and with media that are prone to vaporization.

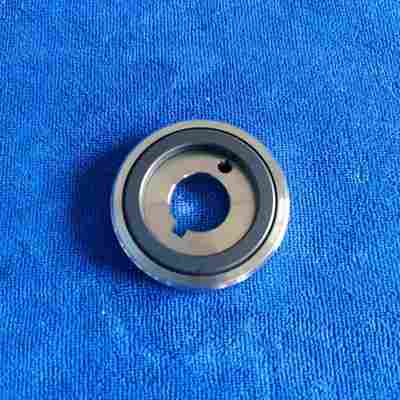

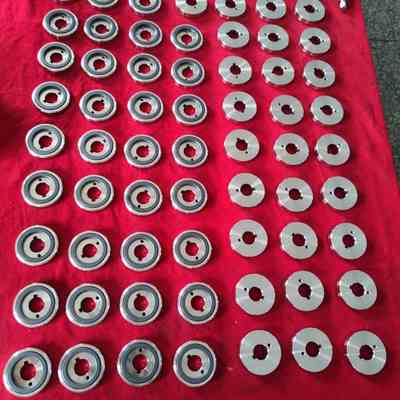

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 0 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 1
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

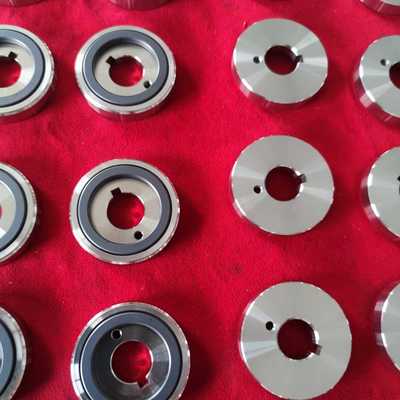

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 2
Our Manufacturing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering, and processing machinery.

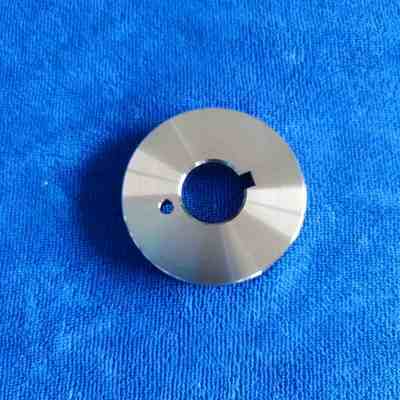

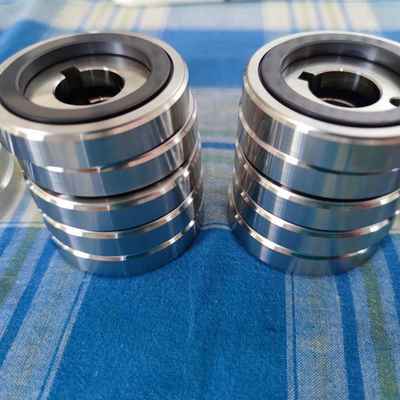

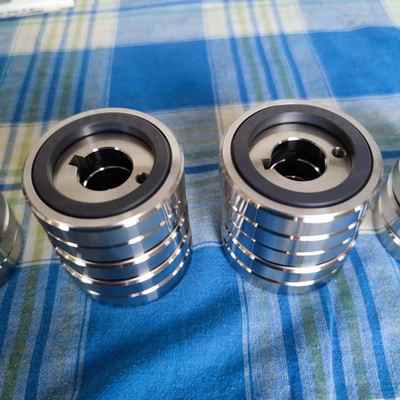

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 3 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 4 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 5
