Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications

  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
  • Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
Luogo di origine Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello prodotti personalizzati
Quantità di ordine minimo 20-50 pc
Prezzo negotiable
Imballaggi particolari Scatola di schiuma+cartone
Tempi di consegna 20-45 giorni di lavoro
Termini di pagamento T/t
Capacità di alimentazione 2000pcs al mese

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Cuscinetto scorrevole in ceramica categoria Cuscinetto ceramico della pompa
Materiale Carburo di silicio sinterizzato senza pressione/zirconia Dimensione Personalizzato, secondo i disegni
Utilizzo Pompa a motore in scatola Pacchetto Scatola di schiuma+cartone
Parole chiave cuscinetti per pompe a motore in scatola Tipo parte cruciale della trasmissione
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
Silicon Carbide Sliding Bearing for Canned Motor Pump
Customized Design and Material for High-Temperature Applications
Product Specifications
Attribute Value
Name Ceramic Sliding Bearing
Category Ceramic pump bearing
Material Pressureless sintered silicon carbide/Zirconia
Size Customized, according to the drawings
Use Canned motor pump
Package Foam + carton box
Product Description

The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and other superior properties.

Primary Applications
  • Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
  • Suitable for canned motor pumps handling media prone to vaporization
Key Properties of Pressureless Sintered Silicon Carbide
Maximum Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

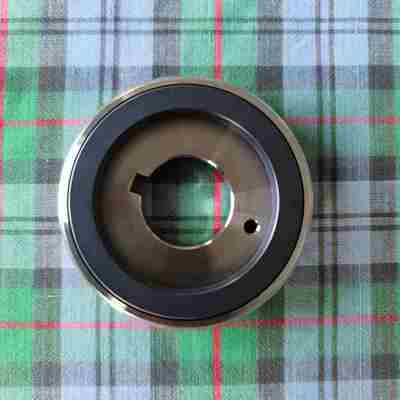

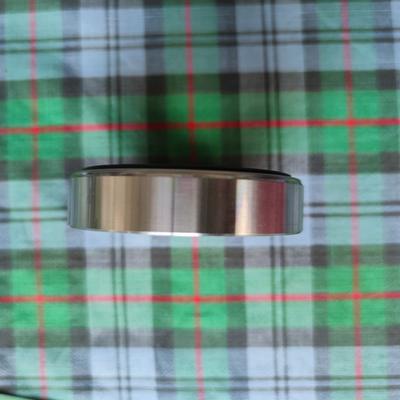

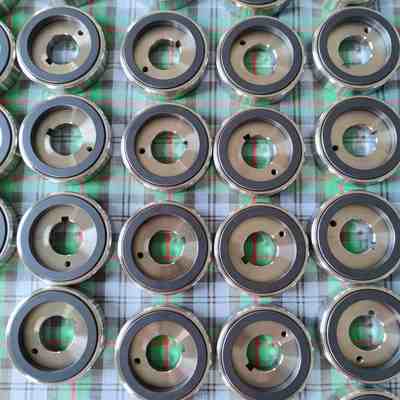

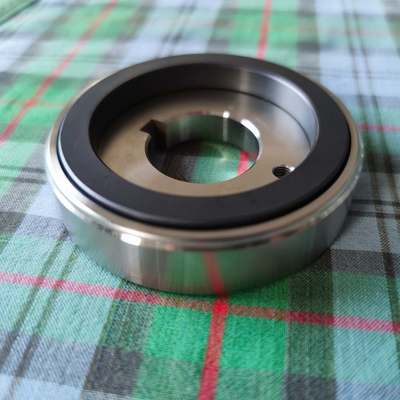

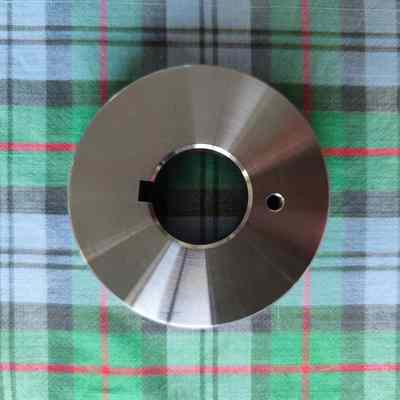

Product Images
Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 0 Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 1 Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 2
Manufacturing Capabilities

We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.

Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 3 Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 4 Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications 5
