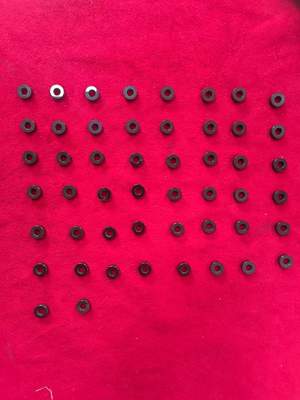

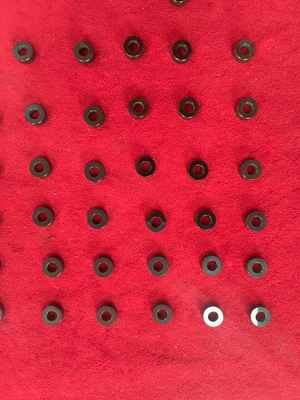

SiC Sliding Bearing with Pressureless Sintered Silicon Carbide

  • SiC Sliding Bearing with Pressureless Sintered Silicon Carbide
  • SiC Sliding Bearing with Pressureless Sintered Silicon Carbide
  • SiC Sliding Bearing with Pressureless Sintered Silicon Carbide
  • SiC Sliding Bearing with Pressureless Sintered Silicon Carbide
Luogo di origine Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello prodotti personalizzati
Quantità di ordine minimo 20-50 pezzi
Prezzo negotiable
Imballaggi particolari Scatola di schiuma+cartone
Tempi di consegna 20-45 giorni di lavoro
Termini di pagamento T/t
Capacità di alimentazione 2000pcs al mese

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Cuscinetto a manicotto scorrevole in ceramica personalizzato Categoria Cuscinetto scorrevole in ceramica
Materiale Pressureless ha sinterizzato il carburo di silicio Applicazione Pompe
Misurare Personalizzato, secondo i disegni Qualità Alta precisione, lunga vita, oem serive
Pacchetto Scatola di schiuma+cartone Specifiche Dimensioni standard e personalizzate
Evidenziare

Pressureless Sintered Silicon Carbide Sliding Bearing

,

OEM Service SiC Sliding Bearing

,

Low Thermal Expansion Ceramic Sliding Bearing
Lasciate un messaggio
Descrizione di prodotto
Customized SiC Sliding Bearing for Pumps
Product Description

Our customized Silicon Carbide (SiC) sliding bearings represent cutting-edge tribological solutions designed for demanding industrial applications. These high-performance components utilize engineered ceramics to deliver significant operational advantages over conventional metallic bearings.

Key Features
  • Exceptional corrosion resistance for use in aggressive chemical environments
  • Superior tribological characteristics with ultra-smooth, hard bearing surfaces
  • Excellent thermal performance maintaining structural integrity at high temperatures
  • Low friction coefficient and minimal wear rates for extended service life
Applications
Our ceramic sliding bearings are extensively used across multiple industries:
  • Transportation: Aviation, marine, and automotive systems
  • Industrial: Chemical processing, power generation, pump systems
  • Advanced Technology: Medical equipment, scientific instruments, defense systems

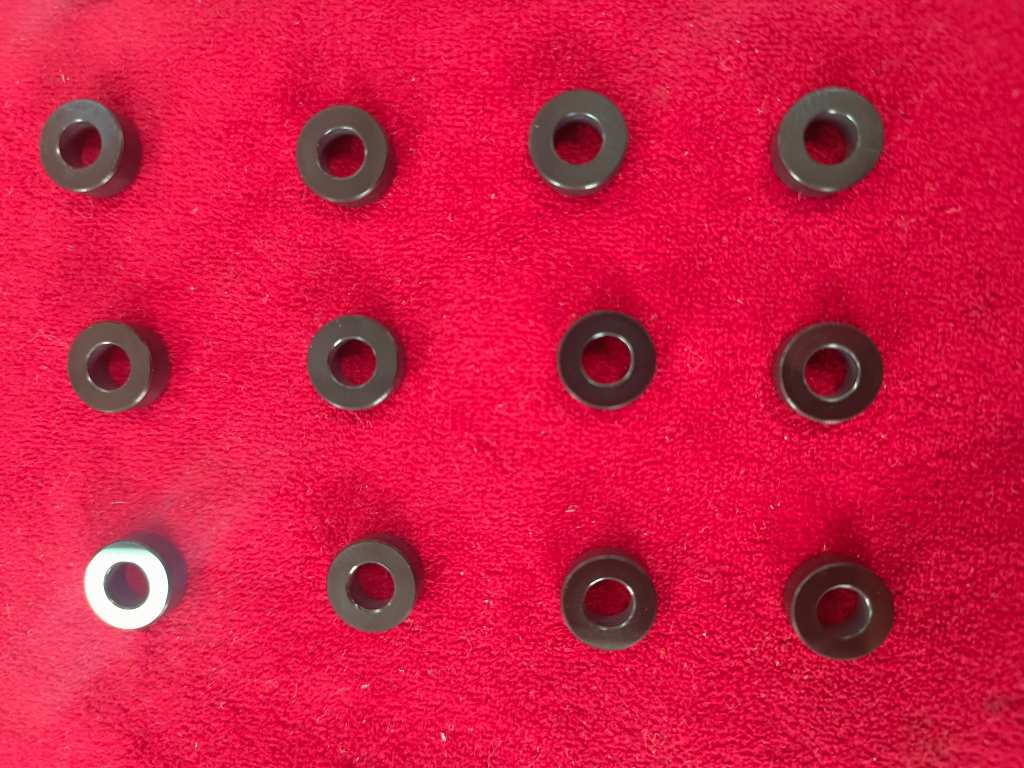

SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 0
Material Properties
Property Value
Maximum Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Resistant to acid and alkali corrosion (including hydrofluoric acid)
Advantages Over Steel Bearings
  • Superior high-temperature performance with stable mechanical properties
  • Better performance in temperature fluctuation environments
  • Enhanced anti-bite and anti-stuck characteristics
  • Capable of operating without lubrication in vacuum conditions
  • Excellent resistance to chemical corrosion
  • Electrical insulation properties with no static electricity
  • Non-magnetic for use in magnetic environments

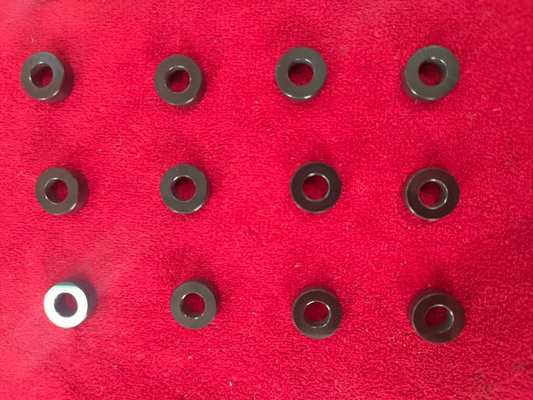

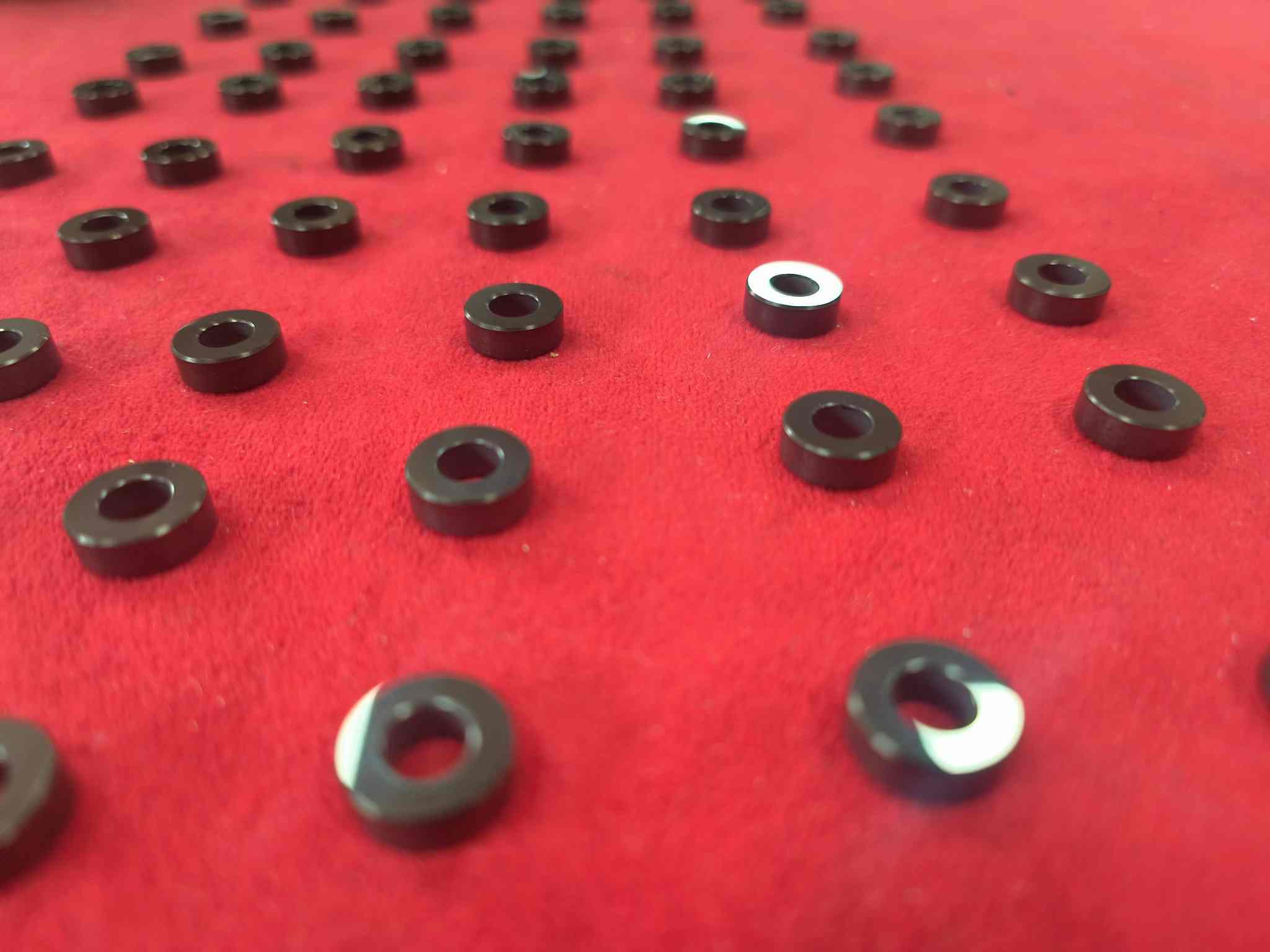

SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 1 SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 2
Our Manufacturing Capabilities

With three factories in China and over 40 years of experience, we possess advanced pressing, sintering, and processing equipment to meet diverse customer requirements. Our company holds eleven invention patents and maintains a professional team dedicated to quality and innovation.

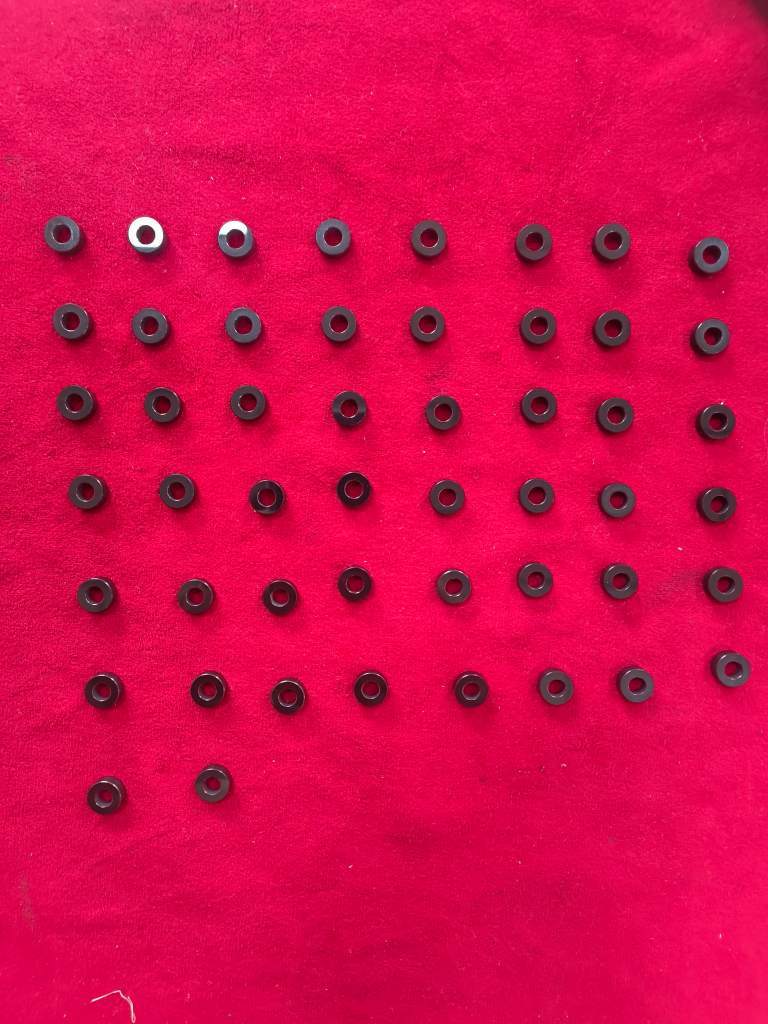

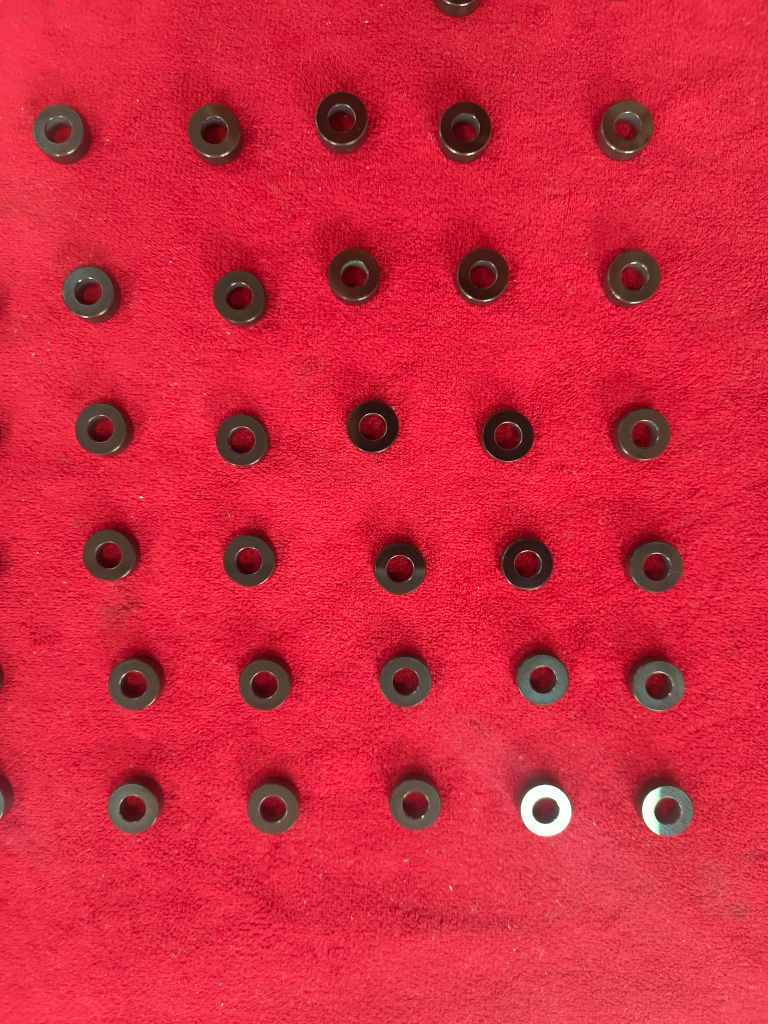

SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 3 SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 4 SiC Sliding Bearing with Pressureless Sintered Silicon Carbide 5
Our Advantages
  • Free sample bearings available
  • ISO standard compliant production
  • Inventory available for immediate shipment
  • Small order quantities accepted
  • Full OEM and customization services
  • Competitive factory-direct pricing
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience in ceramic bearing production, serving domestic and international clients.
Q: How do we guarantee quality?
A: We implement strict quality control including pre-production samples, precise inspections, and secure packaging to ensure product integrity.
Q: What products do we offer?
A: Our product range includes various ceramic bearings (deep groove, angular contact, hybrid) and ceramic balls, all customizable to specifications.
Q: Why choose us over other suppliers?
A: As an integrated manufacturer with modern facilities, we offer better delivery times, quality control, and pricing than typical suppliers.
Q: What services do we provide?
A: We offer full customization, samples for approval, and comprehensive after-sales support to meet your specific requirements.
Welcome Your Enquiry

We maintain strategic partnerships with raw material suppliers to ensure consistent quality and stable pricing. Our customer-focused approach and technical expertise enable us to provide optimal bearing solutions for your applications. Contact us today to discuss your requirements.
