Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps

  • Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
  • Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
  • Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
  • Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
  • Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
Luogo di origine Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello prodotti personalizzati
Quantità di ordine minimo 20-50 pezzi
Prezzo negotiable
Imballaggi particolari Scatola di schiuma+cartone
Tempi di consegna 20-45 giorni di lavoro
Termini di pagamento T/T
Capacità di alimentazione 2000pcs al mese
Dettagli
Nome Cuscinetto scorrevole in ceramica personalizzato Categoria Cuscinetto per pompa in ceramica
Materiale Carburo di silicio sinterizzato senza pressione+acciaio inossidabile Misurare Personalizzato, secondo i disegni
Utilizzo pompa a motore in scatola Pacchetto Scatola di schiuma+cartone
Parola chiave cuscinetto della pompa a motore in scatola Tipo Parte di trasmissione cruciale
Evidenziare

Pressureless Sintered Silicon Carbide Thrust Washer

,

Thermal Stability Ceramic Sliding Bearing

,

Customizable Silicon Carbide Bearing
Lasciate un messaggio
Descrizione di prodotto

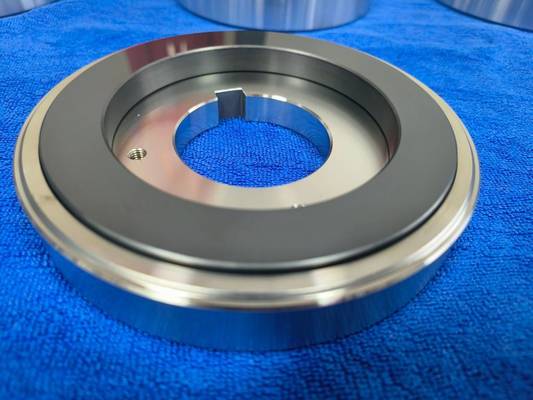

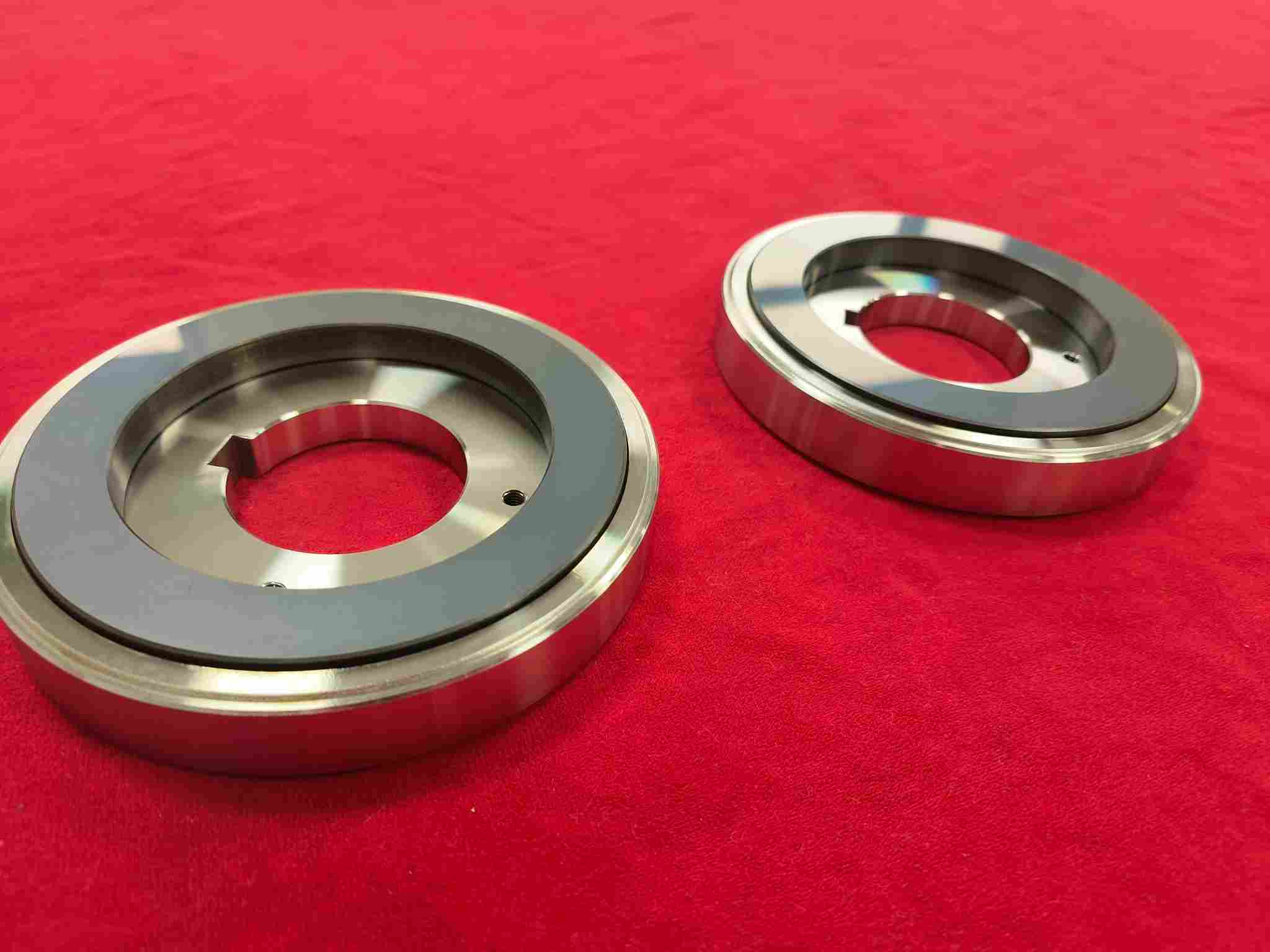

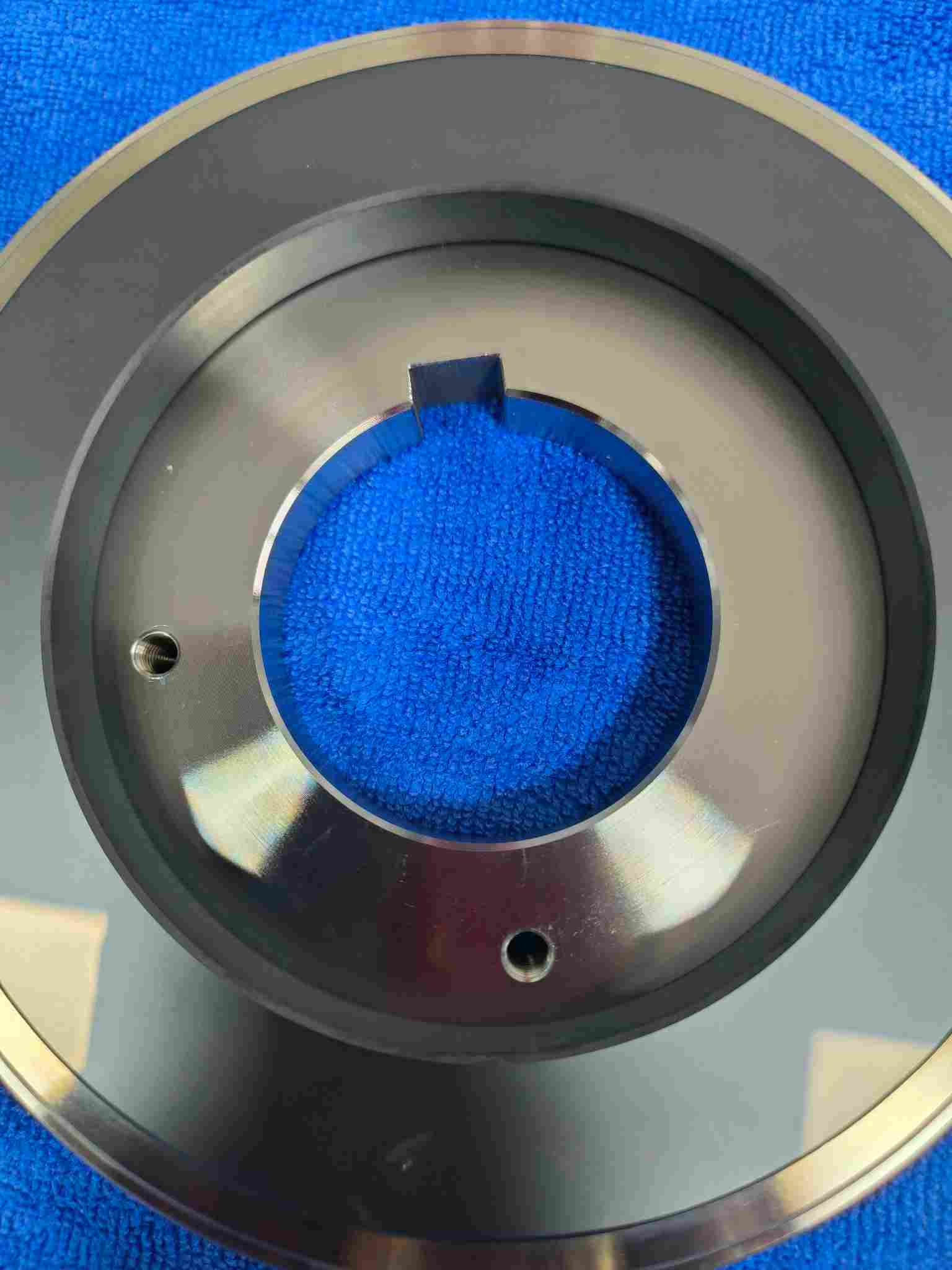

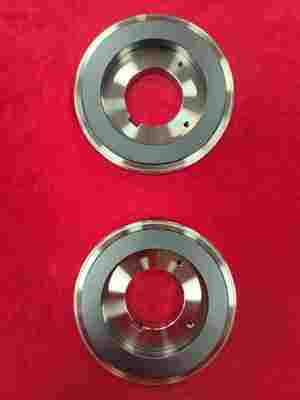

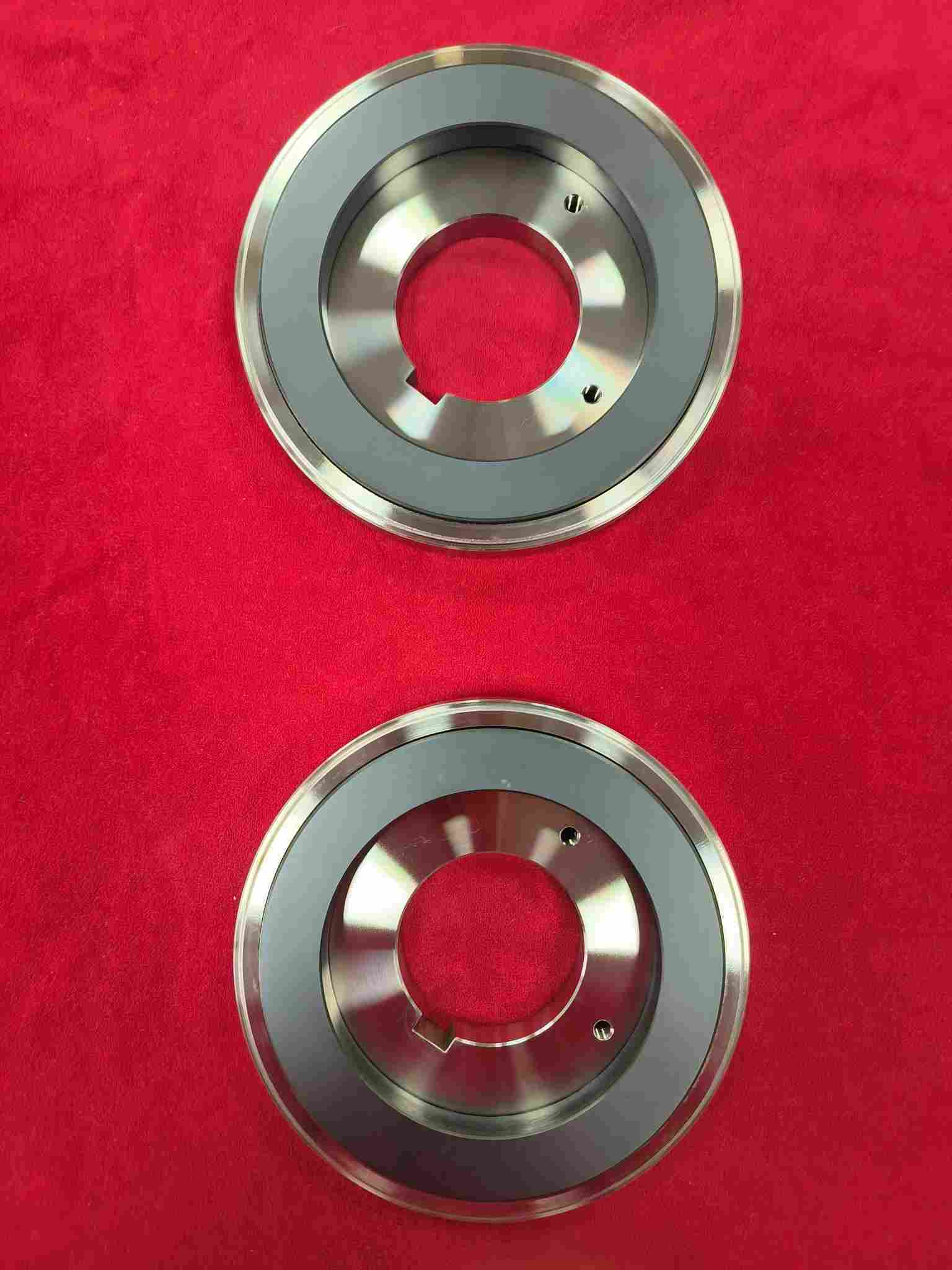

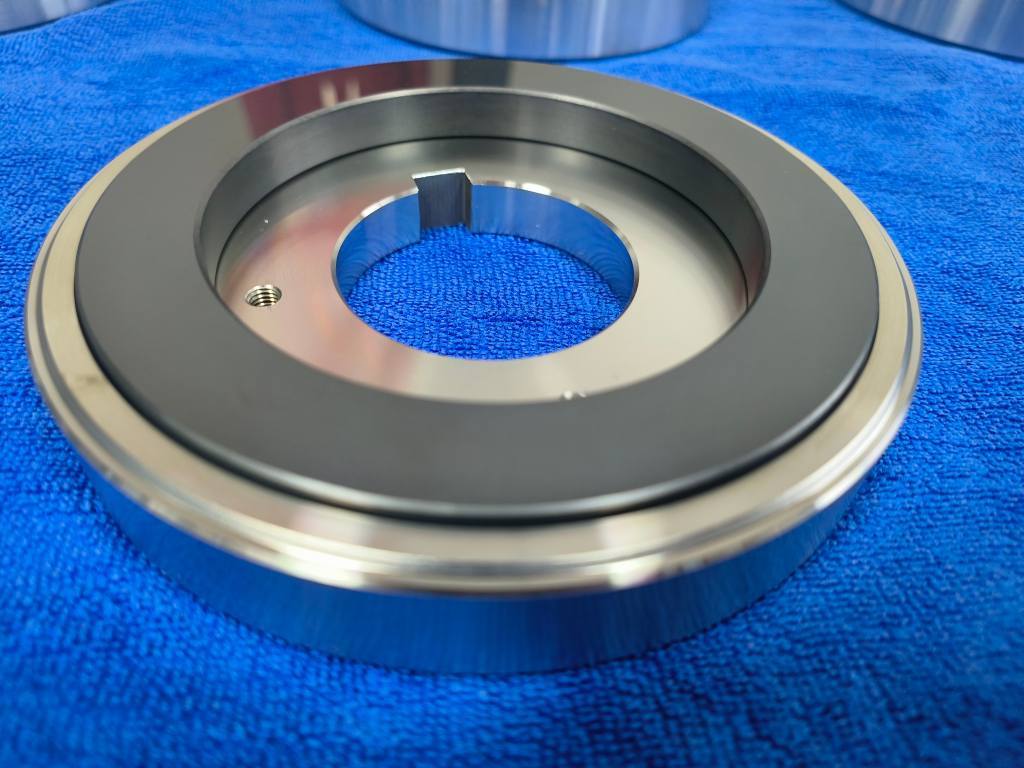

SiC Thrust Washer for Canned Motor Pumps
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly

The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.

Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Applications
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Applications of Canned Motor Pumps
  • Common corrosive conditions, such as inorganic matter, acid, alkaline and salt media (SSiC is standard sliding bearing material)
  • Corrosive conditions with media prone to vaporization
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10⁻⁶/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 0
Silicon Carbide Sleeve for Canned Motor Pump
Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 1
Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 2
Our Manufacturing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering and processing machines.

Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 3
Factory Production Facility
Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 4
Advanced Processing Machines
Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps 5
Manufacturing Equipment
