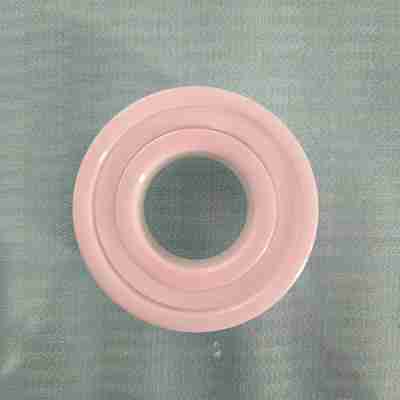

ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter

  • ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter
  • ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter
  • ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter
  • ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter
Luogo di origine Pechino, Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello 6205ce
Quantità di ordine minimo 20-50 pezzi
Prezzo negotiable
Imballaggi particolari Scatola di schiuma+cartone
Tempi di consegna (negoziabile) 25-45 giorni del lavoro
Termini di pagamento T/T
Capacità di alimentazione 2000pcs ai mesi

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Materiale Ceramica, ZrO2 Tipo cuscinetto Cuscinetto a sfera in ceramica
Percision P6/ABEC3 a P4/ABEC7 Gabbia Ptfe
Caratteristica Vita duratura, a basso rumore, alta precisione Applicazione Pompa
Spazio C0-C5 Numero di riga Fila singola
Struttura Groove profondo Diametro interno 25 mm
Diametro fuori 52 mm Larghezza 15 mm
Evidenziare

P6/ABEC3 to P4/ABEC7 Precision Ceramic Ball Bearing

,

20mm Inner Diameter ZrO2 Bearing

,

47mm Outer Diameter Full Ceramic Bearing
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
ZrO2 6205ce Ceramic Ball Bearing
Product Overview: Model 6205

The 6205 is a high-performance, full-ceramic bearing designed for demanding applications. Featuring Zirconia (ZrO₂) construction for both rings and balls with a PTFE cage, it's ideal for corrosive environments, extreme temperatures, electrical insulation, and applications where lubrication is impossible.

Product Specifications
Attribute Value
Material Ceramic, ZrO2
Bearing Type Ceramic Ball Bearing
Precision P6/ABEC3 to P4/ABEC7
Characteristic Long-lasting life, Low noise, High precision
Application Pump
Clearance C0-C5
Number of Row Single row
Structure Deep groove
Inner Diameter 25mm
Out Diameter 52mm
Width 15mm
Key Features
  • High temperature and cold resistance
  • Excellent wear and corrosion resistance
  • Magnetic and electrical insulation properties
  • Oilless self-lubrication capability
  • High-speed operation suitability
Materials & Properties
Rings & Balls: Zirconia (ZrO₂) Full Ceramic Construction
  • Complete electrical insulation and uniform resistance to corrosion and wear
  • Highly inert, resisting virtually all acids, alkalis, and organic solvents
  • Non-magnetic and electrically insulating - essential for sensitive equipment
  • High hardness with low density for excellent wear resistance and smooth operation
Cage: PTFE (Polytetrafluoroethylene)
  • Superior dry-running capability with self-lubricating properties
  • Extremely low friction ensures low starting and running torque
  • Outstanding chemical inertness matching Zirconia's corrosion resistance
Technical Parameters
Parameter Description
Material Ceramic: ZrO2
Corrosion resistance Excellent
Friction Lower than steel
Wear resistance Excellent
Temperature resistance High
Strength Higher than steel
Durability Excellent
Weight Lighter than steel
Precision High
Biocompatibility Some ceramic materials are biocompatible
Applications

This bearing is specifically chosen for applications where standard steel bearings would rapidly fail:

  • Chemical & Process Industries: Pumps, mixers, and valves handling aggressive chemicals
  • Food, Beverage & Pharmaceutical: Equipment requiring frequent steam cleaning where lubricant contamination is prohibited
  • Electrical Insulation: VFD-driven motors to prevent bearing fluting from stray currents
  • Semiconductor Manufacturing: Wafer processing equipment avoiding metallic contamination
  • Precision Instruments: MRI scanners, analytical instruments requiring non-magnetic components
  • High-Temperature & Vacuum Environments: Ovens and vacuum chambers due to thermal stability

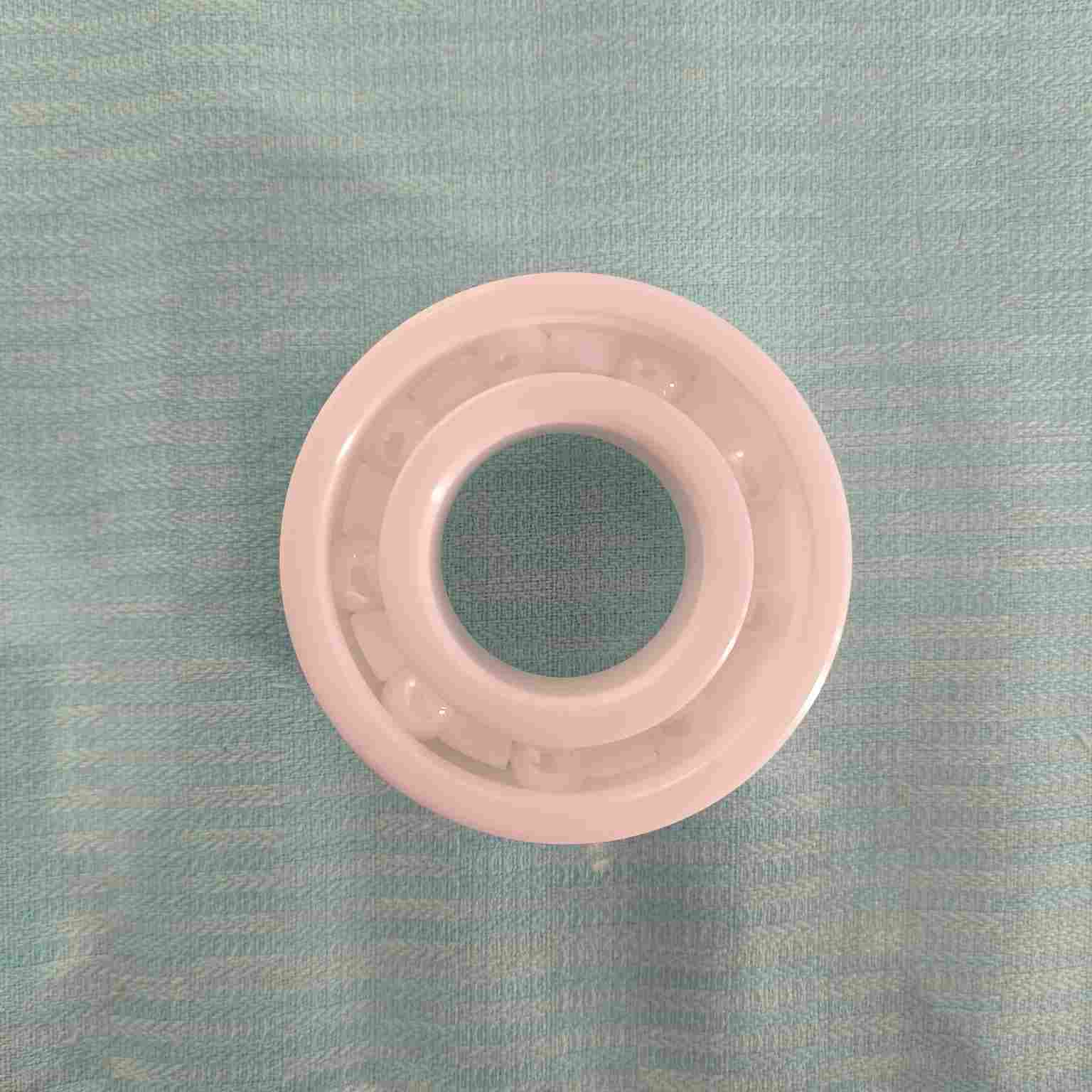

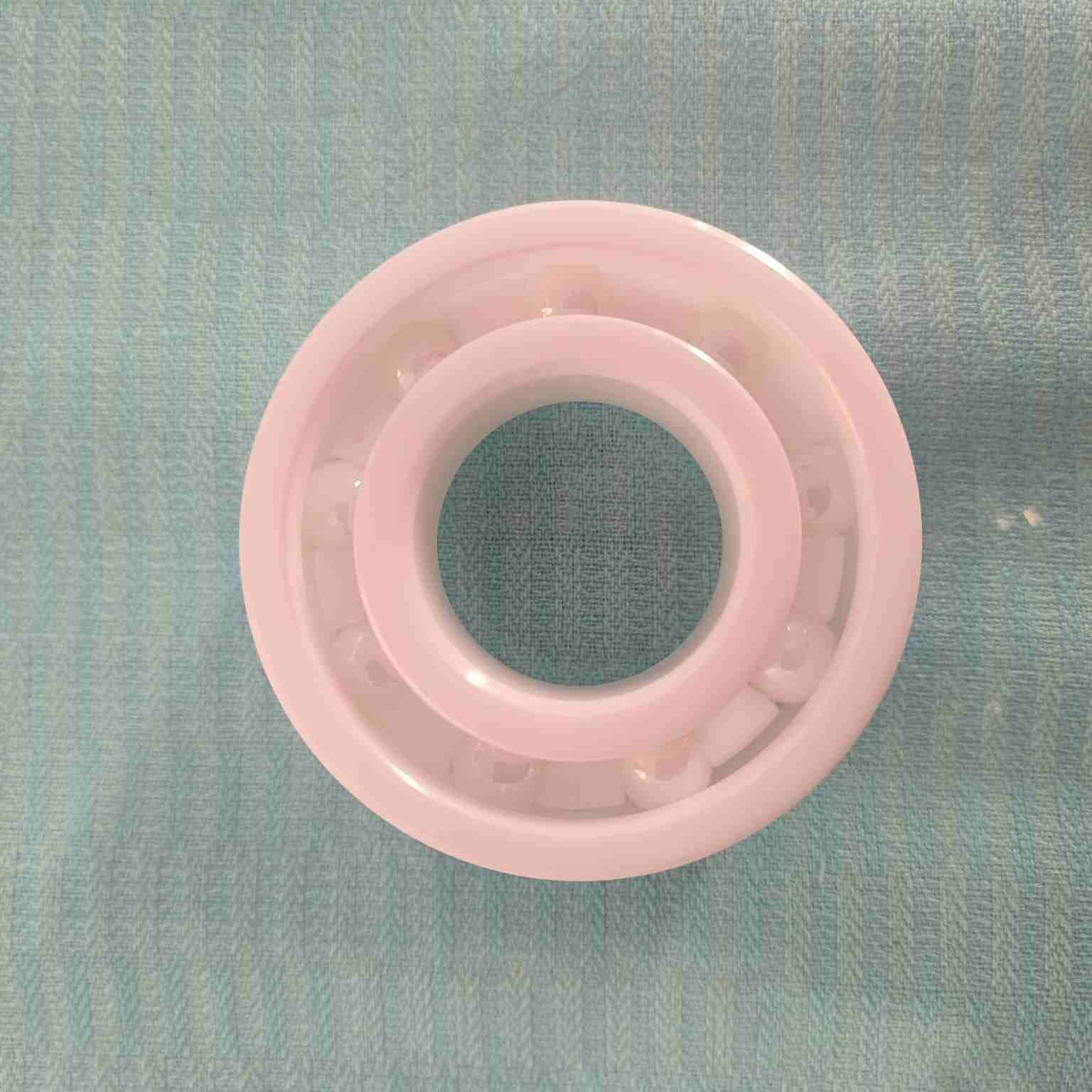

ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter 0 ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter 1
Our Manufacturing Advantages
  • Professional Team: 40+ years of experience since 1982 with eleven invention patents and dedicated R&D
  • Advanced Production: Fully automated grinding and assembly line producing 3 million sets annually
  • Material Mastery: Vertical integration from raw materials to finished products for consistent quality

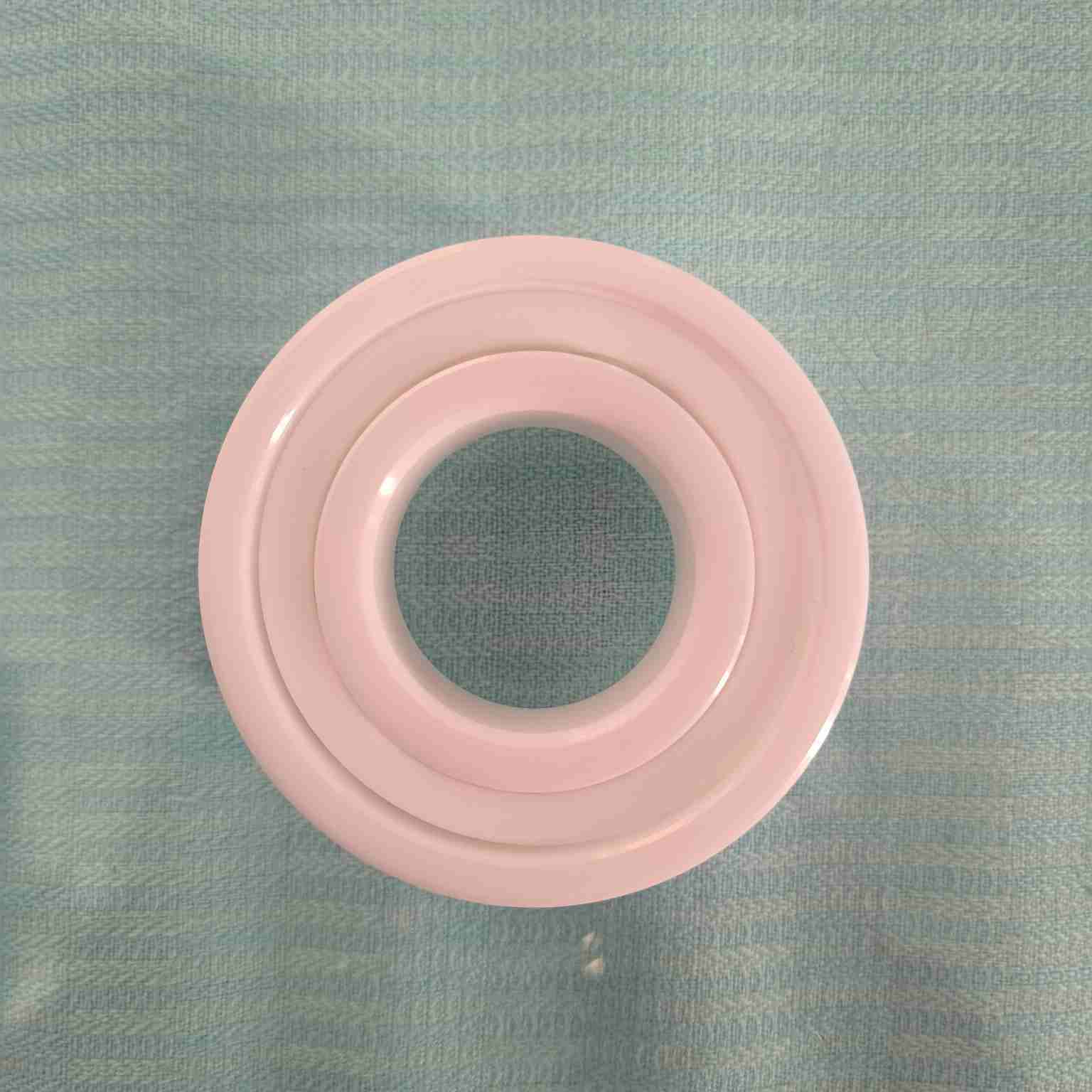

ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter 2 ZrO2 6205 Ceramic Ball Bearing 25mm Inner Diameter 52mm Outer Diameter 3
Frequently Asked Questions
Who are we?

We are a factory in Beijing, China with over 40 years of ceramic bearing production experience, serving domestic and international clients.

How do we guarantee quality?

We implement strict production protocols, precise inspection processes, and double-layer protective packaging to ensure product integrity.

What products do we offer?

Our range includes ceramic deep groove ball bearings, angular contact bearings, hybrid bearings, linear bearings, and ceramic balls.

Why choose us?

As an integrated manufacturer with three factories, we offer superior quality control, faster delivery, and competitive pricing.

What services do we provide?

We offer custom solutions, product samples, technical consultation, and comprehensive after-sales support.

We welcome your inquiries about our high-quality ceramic bearings. As a professional manufacturer with complete R&D, production, and service capabilities, we are committed to providing superior products and technical support. Contact us today to discuss your requirements.
