Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity

  • Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity
  • Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity
  • Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity
  • Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity
Luogo di origine Cina
Marca CSQ
Certificazione FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Numero di modello prodotti personalizzati
Quantità di ordine minimo 20-50 pezzi
Prezzo negotiable
Imballaggi particolari Scatola di schiuma+cartone
Tempi di consegna 20-45 giorni di lavoro
Termini di pagamento T/T
Capacità di alimentazione 2000pcs al mese

Contattimi gratis campioni e buoni.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Cuscinetto scorrevole in ceramica personalizzato Categoria Cuscinetto per pompa in ceramica
Materiale Carburo di silicio sinterizzato senza pressione+acciaio inossidabile Misurare Personalizzato, secondo i disegni
Utilizzo pompa a motore in scatola Pacchetto Scatola di schiuma+cartone
Parola chiave cuscinetto della pompa a motore in scatola Tipo Parte di trasmissione cruciale
Evidenziare

Customized Size SiC Thrust Disc

,

High Corrosion Resistance SiC Thrust Disc

,

High Thermal Conductivity SiC Thrust Disc
Puoi spuntare i prodotti di cui hai bisogno e comunicare con noi nella bacheca.
Lasciate un messaggio
Descrizione di prodotto
SiC / Stainless Steel Thrust Disc
Product Overview

SiC Sleeve Sliding Bearing for Canned Motor Pump

This high-performance composite SiC/Stainless Steel Thrust Disc is engineered to handle extreme axial loads in demanding environments. It combines a wear-resistant Silicon Carbide (SiC) face with a structural Stainless Steel mounting substrate, offering an optimal balance of superior hardness and mechanical strength.

Key Features
  • Exceptional Wear & Abrasion Resistance: The Silicon Carbide face is one of the hardest materials available, providing outstanding resistance to wear and abrasion, significantly extending service life.
  • High Corrosion Resistance: The stainless steel substrate provides excellent resistance to rust and corrosion, while the SiC face is inert to most harsh chemicals.
  • Withstands Extreme Pressure: Designed to perform reliably under high axial loads and in boundary lubrication conditions.
  • Low Friction & High Thermal Conductivity: SiC's low coefficient of friction and high thermal conductivity help minimize heat generation and dissipate it effectively, reducing the risk of thermal seizure.
  • Robust Design: The stainless steel core ensures strong mechanical integrity and provides a reliable interface for press-fitting or securing the disc onto a shaft.
Typical Uses
  • Mechanical Seals: As a stationary or rotary face in seal assemblies for pumps and mixers.
  • Thrust Bearings: As the critical wear component in hydrodynamic and hydrostatic thrust bearings.
  • Subsea & Marine Equipment: In thrusters and propulsion systems exposed to seawater.
  • Chemical Processing Pumps: Where corrosion and abrasive fluids are present.
  • High-Performance Automotive & Aerospace: In turbochargers, transmissions, and other high-speed rotating machinery.
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

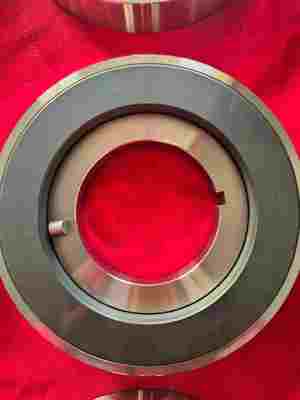

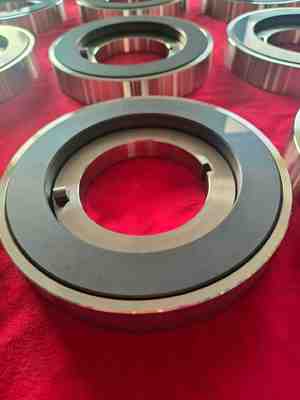

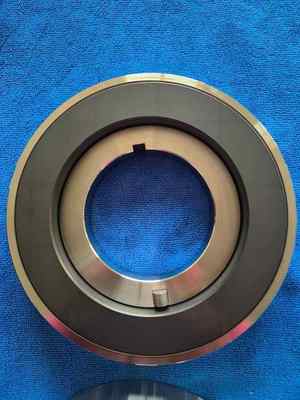

Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 0 Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 1 Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 2
Our Factory and Processing Machines

We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.

Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 3 Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 4 Customized Size SiC Thrust Disc with High Corrosion Resistance and High Thermal Conductivity 5
